48V 30Ah Sodium-Ion Battery Pack with DL‑R24TK‑TZJ Smart BMS: The Ultimate Power Solution for Commercial Cleaning Robots
In the fast‑growing commercial cleaning industry, autonomous cleaning robots have become essential for hospitals, hotels, shopping malls, factories, and logistics centers. These machines demand safe, stable, long‑cycle, and cost‑effective battery systems that can operate reliably in complex indoor environments. Today, we introduce a high‑performance 48V 30Ah sodium‑ion (Na‑ion) battery pack powered by the DL‑R24TK‑TZJ 8–24S 40–100A common‑port smart BMS with active balancing. This integrated solution redefines power reliability for industrial cleaning robots, combining superior cell performance, intelligent management, and all‑round safety protection.
Why Sodium‑Ion Technology Is a Game‑Changer for Cleaning Robots
Traditional power solutions for cleaning robots often rely on lithium‑ion or lead‑acid batteries. Lead‑acid batteries are heavy, short‑cycled, and sensitive to temperature; lithium‑ion batteries offer high energy density but come with higher costs, thermal safety risks, and limited low‑temperature performance. Sodium‑ion batteries solve these pain points with unique advantages perfectly matched to cleaning robot scenarios.
Our 48V 30Ah Na‑ion battery pack uses high‑quality cylindrical SIB‑O‑32140‑10Ah cells. Key specifications include:
- Nominal voltage: 3.0V per cell; 48V system voltage
- Nominal capacity: 10Ah per cell; 30Ah for the complete pack
- Charge cutoff voltage: 4.0V; discharge cutoff voltage: 1.5V
- AC impedance (1kHz): ≤3mΩ
- Weight: 265±5g per cell
- Standard charge current: 0.2C (2A); max charge current: 0.5C (5A)
- Max continuous discharge current: 10.0C; max instantaneous discharge current: 15.0C (3 seconds)
- Operating temperature: charging ‑10℃ to 45℃; discharging ‑40℃ to 60℃
- Cycle life: ≥1500 cycles at room temperature
- Excellent low‑temperature performance: ‑40℃ discharge capacity ≥60% of initial capacity
For cleaning robots that run continuously for hours, these parameters deliver strong power output, stable voltage, and long‑term durability. The wide temperature tolerance ensures stable operation in cold warehouses, hot workshops, and humid environments, eliminating common issues like capacity drop or startup failures.
DL‑R24TK‑TZJ Smart BMS: Intelligent Management for Maximum Performance
Even the best cells require precise management to reach full potential. The DL‑R24TK‑TZJ smart BMS is purpose‑built for high‑power battery systems, supporting 8–24 series connections and 40–100A current levels. Its third‑generation active balancing and comprehensive protection functions make it ideal for 48V Na‑ion cleaning robot battery packs.
Core Advantages of DL‑R24TK‑TZJ BMS
-
High‑Power Active Balancing
The BMS provides up to 1A peak active balancing current, transferring energy from high‑charge cells to low‑charge cells in real time. This eliminates voltage imbalance, extends pack cycle life, and ensures full capacity utilization in long‑term operation—critical for robots working continuous shifts.
-
Wide Compatibility & Flexible Configuration
It supports Na‑ion, LFP, NCM, and LTO chemistries, with automatic string detection. For 48V Na‑ion systems, it adapts seamlessly to series/parallel arrangements, simplifying design and assembly.
-
Multi‑Level Comprehensive Protection
- Overcharge / over‑discharge / overcurrent / short‑circuit protection
- Charge/discharge temperature protection: ‑40℃ to 75℃
- MOS temperature protection up to 110℃
- Voltage difference and temperature difference alarms
- Thermal runaway detection with automatic MOS shutoff and buzzer alarm
All parameters are adjustable via APP or PC software for robot‑specific needs.
-
Rich Communication & IoT Capabilities
Integrated UART, optional RS485 and CAN bus, plus Bluetooth for mobile APP monitoring. Users view real‑time cell voltages, total voltage, current, SOC, temperature, and fault codes remotely. It supports cloud platforms for fleet management, predictive maintenance, and data logging—essential for commercial cleaning robot operations.
-
Stable, Low‑Power Design
Working power consumption ≤1.25W; sleep power as low as 35–45mW. This extends standby time and reduces unnecessary energy waste, boosting robot operating efficiency.

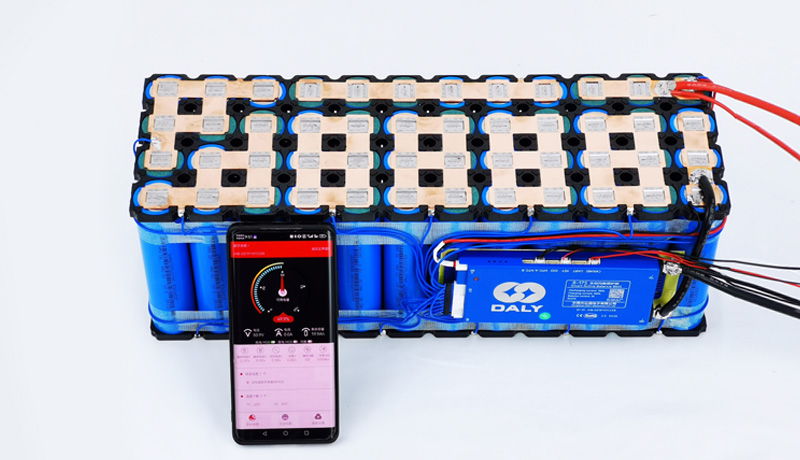

System Integration: 48V 30Ah Na‑ion Battery Pack for Cleaning Robots
Combining SIB‑O‑32140‑10Ah cells with DL‑R24TK‑TZJ BMS creates a robust 48V 30Ah power system optimized for cleaning robots.
Performance Highlights
-
High Safety & Reliability
Na‑ion cells pass overcharge, over‑discharge, external short, thermal abuse, extrusion, and drop tests with no fire, explosion, or leakage. The BMS adds multi‑level protection, making the pack safe for indoor, crowded environments.
-
Long Cycle Life & Low Cost
≥1500 cycles reduce replacement frequency. Abundant sodium resources lower material costs compared to lithium‑ion, lowering total ownership cost for robot fleets.
-
Excellent Low‑ & High‑Temperature Performance
‑40℃ to 60℃ operating range maintains high capacity retention. Robots work reliably in freezers, high‑temp workshops, and unheated buildings without performance loss.
-
Strong High‑Rate Discharge
10C continuous and 15C instantaneous discharge support peak loads from brushes, vacuum systems, and driving motors, ensuring stable power during heavy tasks.
-
Smart Management & Easy Maintenance
Bluetooth/APP/PC monitoring, fault alarms, and data recording simplify maintenance. Remote parameter adjustment and diagnostics reduce downtime and service costs.
Application Scenarios & Value for Commercial Cleaning Robots
This 48V 30Ah Na‑ion battery solution suits various commercial cleaning robots:
- Autonomous Floor Scrubbers & Sweepers: Long runtime, stable power, frequent charging
- Industrial Cleaning Robots: Harsh factory floors, dust, temperature variations
- Commercial & Institutional Robots: Hospitals, hotels, airports—high safety, low noise, zero leakage
- Large‑Area & Logistics Robots: Long‑distance, high‑efficiency, fleet management
For robot manufacturers and operators, this solution lowers BOM cost, improves safety, extends service life, and enhances user experience. It reduces maintenance frequency and improves return on investment.
Conclusion
The 48V 30Ah sodium‑ion battery pack with DL‑R24TK‑TZJ 8–24S 40–100A active‑balance smart BMS represents a next‑generation power solution for commercial cleaning robots. Backed by high‑performance SIB‑O‑32140‑10Ah cells and intelligent BMS management, it delivers safety, stability, efficiency, and economy.
As the commercial cleaning robot market expands, sodium‑ion batteries with smart BMS will become the preferred power choice. This integrated solution provides reliable, long‑lasting, low‑cost energy to help cleaning robots operate efficiently in diverse environments.
If you’re developing or upgrading commercial cleaning robots, the 48V 30Ah Na‑ion battery system with DL‑R24TK‑TZJ BMS offers strong performance, safety, and value. It’s ready to power the next generation of intelligent cleaning equipment.
